DS-7116HGHI-M1/T 16-ch 1080P Lite Mini 1U H.265 DVR DS-7116HGHI-M1/T 16-ch 1080P Lite Mini 1U H.265 DVR
SKU: #10

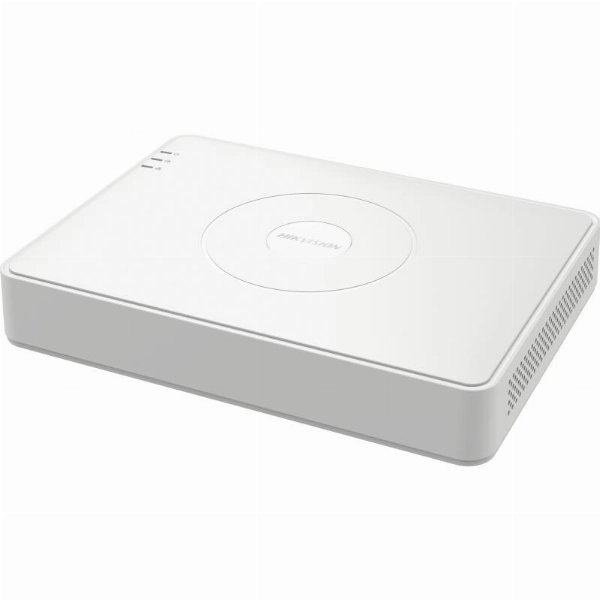

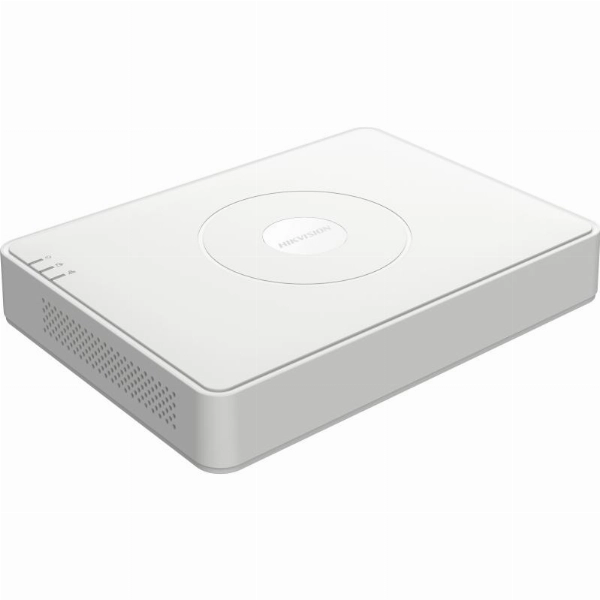

DS-7116HGHI-M1/T 16-ch 1080P Lite Mini 1U H.265 DVR

Brand:
Colour:    Size:
Unit:
Availability : Out of Stock
৳6000.00
Payment: Cash on Delivery Available
Warranty: 6 Months Replacement
Call Now: 01770550006
Features, Specs, and Benefits Explained

Hikvision DS-7116HGHI-M1 16 Channel DVR

Key Features

  • Model: DS-7116HGHI-M1
  • Number of Channel: 16 Channel
  • Recording Resolution.: 1080p
  • Number HDD Interface: 1x SATA
  • Max. Storage Support - 10TB
Full Description of DS-7116HGHI-M1/T 16-ch 1080P Lite Mini 1U H.265 DVR

DS-7116HGHI-M1/T


16-ch 1080P Lite Mini 1U H.265 DVR

  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Audio via coaxial cable
  • Up to 18-ch IP camera input (up to 5 MP)
  • Encoding ability up to 1080p lite @ 15 fps
  • Support all channels HDTVI two-way audio technology
frequently asked questions

Specification

  • Motion Detection 2.0
  • Human/Vehicle Analysis

    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

    Quick search by object or event type is supported;

  • Video and Audio
  • IP Video Input

    2-ch (up to 18-ch)

    Up to 5 MP resolution

    Support H.265+/H.265/H.264+/H.264 IP cameras

  • Analog Video Input

    16-ch

    BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection

  • HDTVI Input1080p25, 1080p30, 720p25, 720p30
  • AHD Input1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input1080p25, 1080p30, 720p25, 720p30
  • CVBS InputPAL/NTSC
  • HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Input1-ch RCA (2.0 Vp-p, 1 K?), and 16-ch via coaxial cable
  • Audio Output1-ch, RCA (Linear, 1 K?)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
  • Synchronous Playback16-ch
  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution

    For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

    For 720p stream access: 720p/WD1/4CIF/VGA/CIF

    For standard definition stream access: WD1/4CIF/VGA/CIF

  • Frame Rate

    Main stream:

    For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

    For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

    For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

    Sub-stream:

    For 1080p and 720p stream access CIF/QVGA@15 fps

    For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

  • Video Bitrate32 Kbps to 4 Mbps
  • Dual-streamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Network
  • Total Bandwidth96 Mbps
  • Remote Connection128
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF
  • Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA1, SATA interface
  • CapacityUp to 6 TB capacity for each disk
  • USB Interface2 × USB 2.0
  • General
  • Power Supply12 VDC, 2 A
  • Consumption? 7 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)
  • ? 1.8 kg (without HDD, 4.0 lb.)
